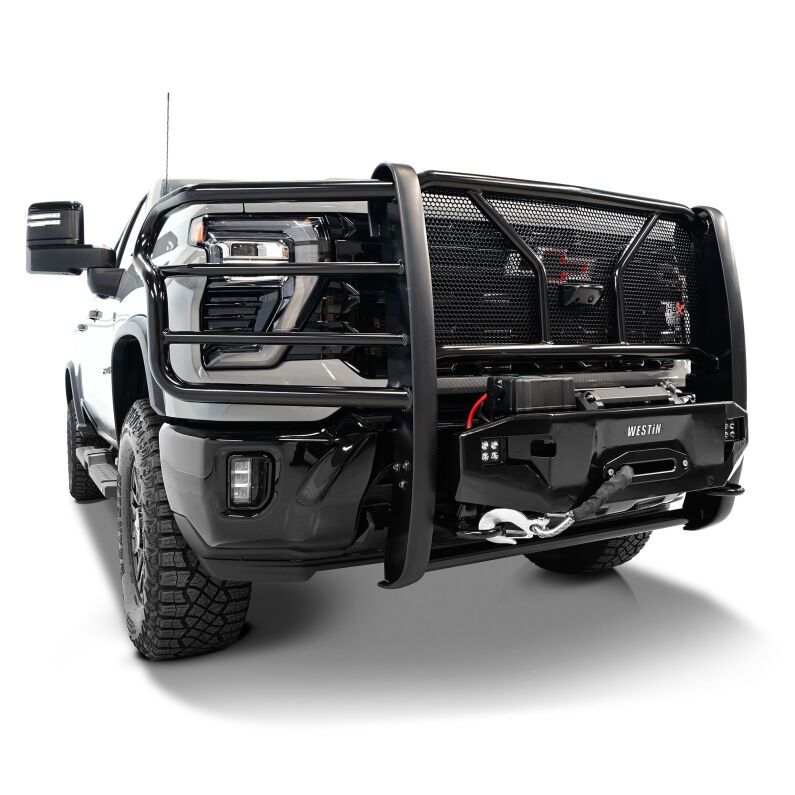

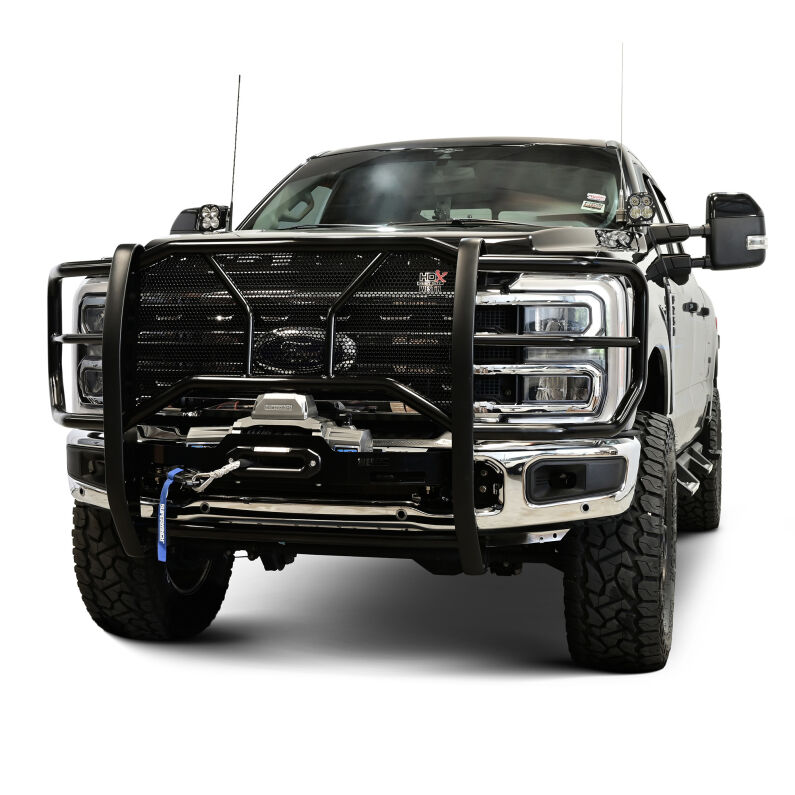

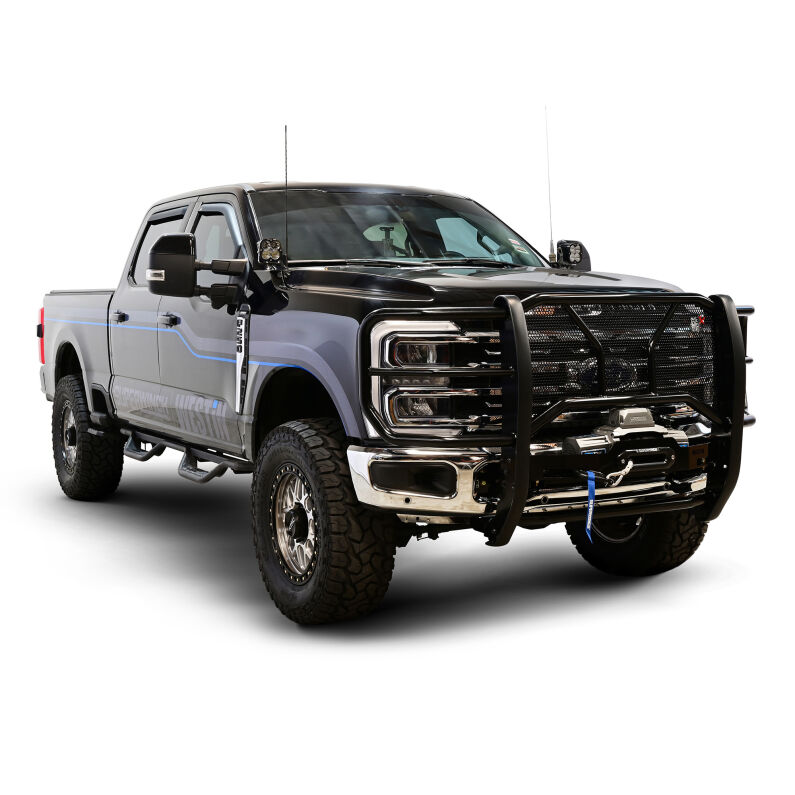

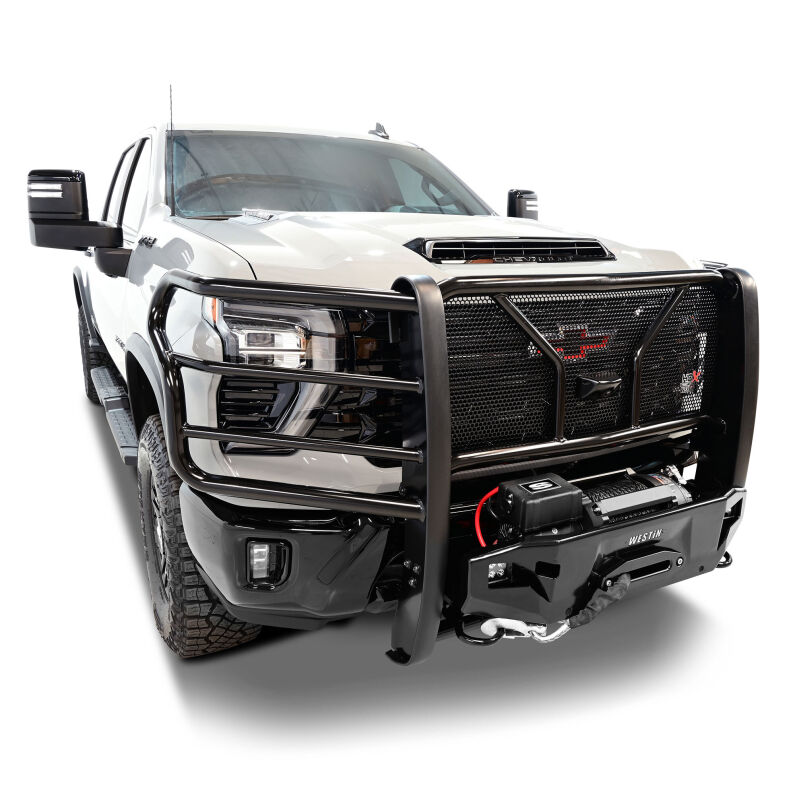

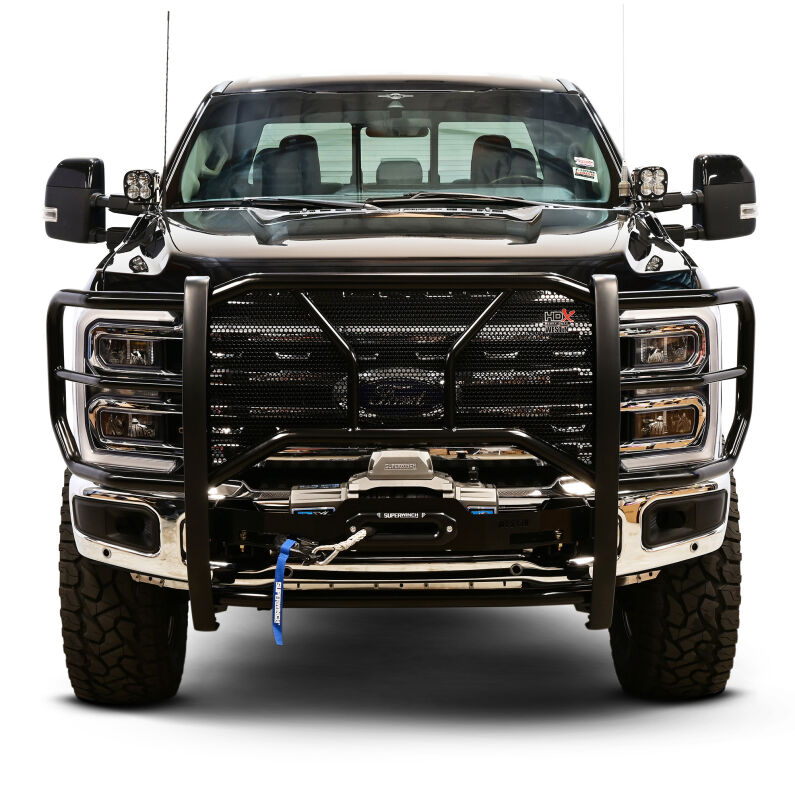

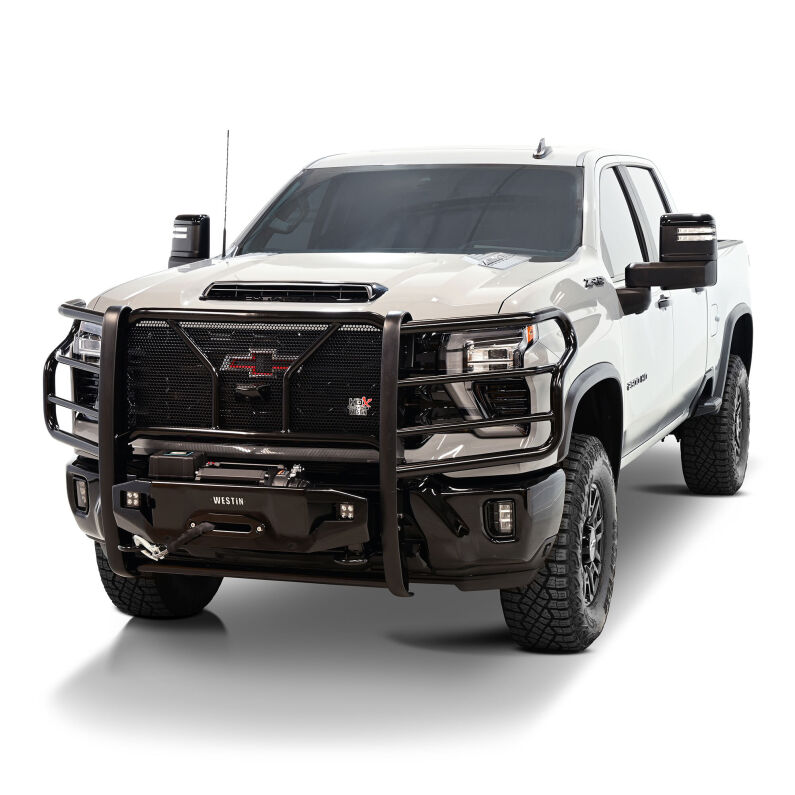

Westin Winch Trays provide a vehicle-specific way to mount a recovery winch on the factory front end. The MAX series covers a broad range of truck applications and can serve alone or as the tray component of compatible Westin winch-mount grille guard system. HDX MAX is the higher-capacity option for selected heavy-duty trucks, accepting large-frame winches up to 18,000 pounds and mounting directly to the frame. Both use black-finished steel and application-specific brackets. The HDX MAX adds fairlead drilling, openings for square LED cube lights and provisions to reposition certain factory electronics. Choose the tray by truck, winch footprint, fairlead, grille guard and factory equipment.

Mounts directly to the vehicle frame

Available for a wide variety of vehicle-specific applications

Compatible MAX trays can pair with an HDX winch-mount grille guards

HDX MAX accepts compatible large-frame winches rated up to 18,000 pounds

HDX MAX Winch Trays are primarily designed for 3/4 ton to 2-ton trucks tested to a maximum straight line pull of 22,000 lbs.

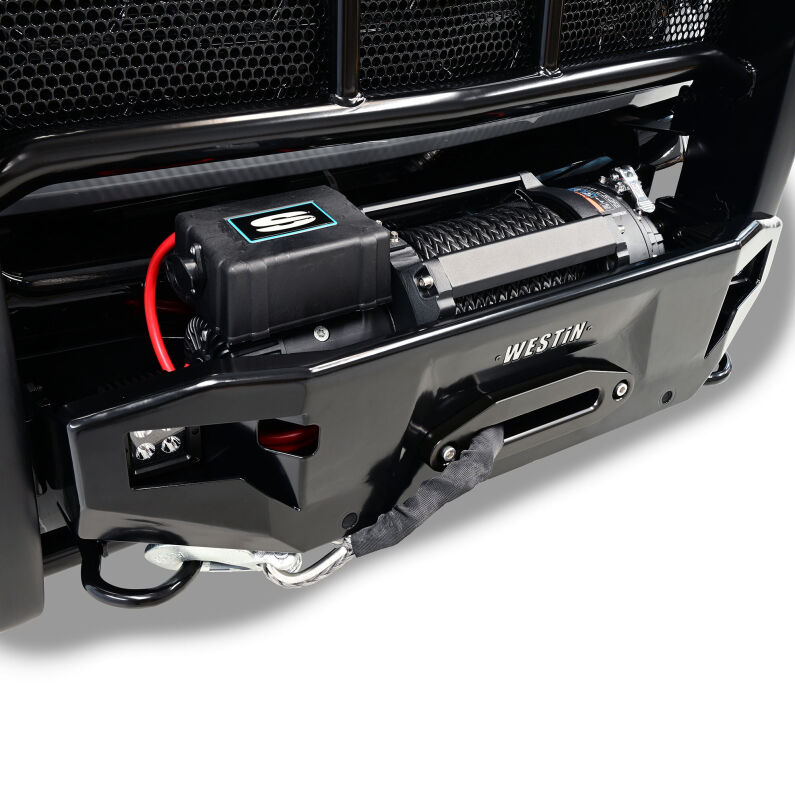

Predrilled winch tray face accommodates a hawse or roller fairlead

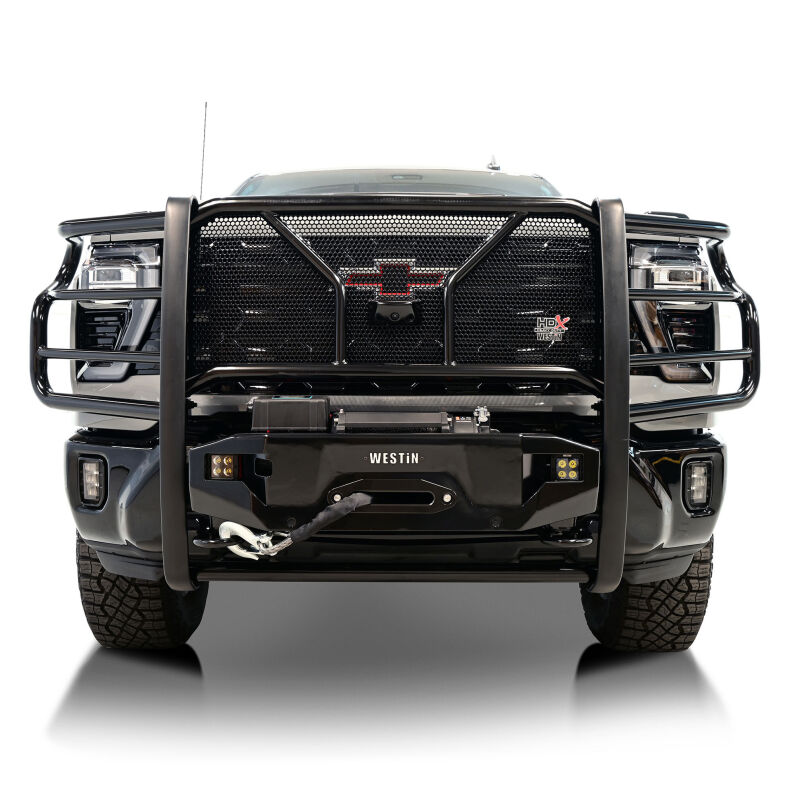

Three-inch square LED cube openings are incorporated into HDX MAX

Provides for relocation of parking sensors on supported vehicles

Front-camera relocation and active-cruise compatibility depend on application

Steel construction and black powder coat finish

Match winch footprint, fairlead and vehicle-specific mounting parts before ordering
