SI10000 10000 lb Standard Drum Hydraulic Winch No Rope Blue

#S100429
$2,402.00
This product is universal fit. Please check specifications before purchase.

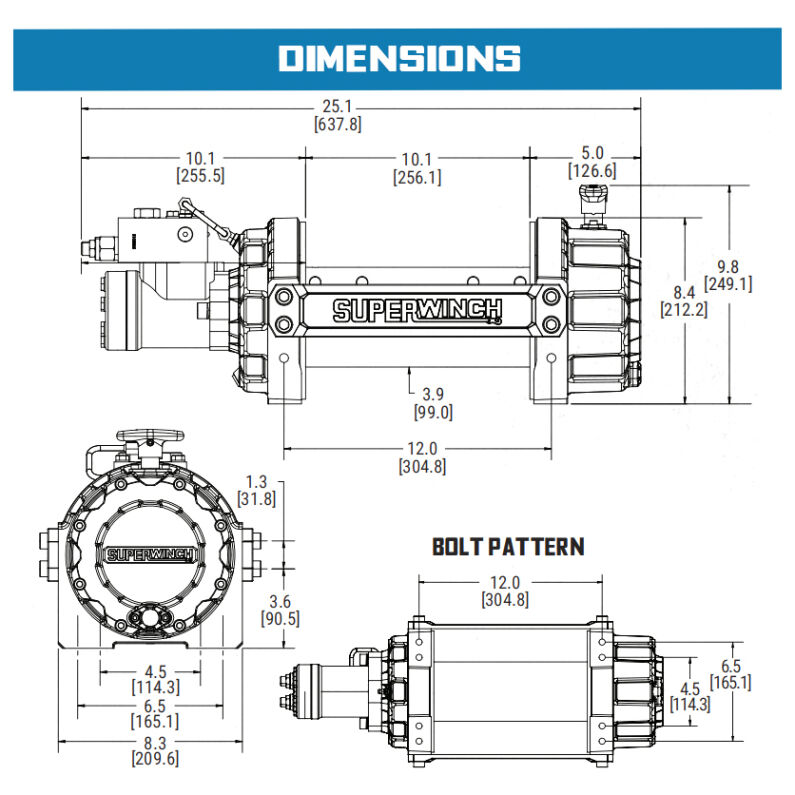

  • Drum Barrel Diameter3.9 in. / 99 mm
  • Load BlockSuperblock Bi-Directional Load Control Valves
  • LubricationSynthetic Grease
  • Maximum Input Flow15 gpm/57 lpm
  • Maximum Input Pressure2050 psi/142 bar
  • Minimum Rope Breaking Strength15100 lbs. (SAE J706) 89.0 kN (EN 14492-1)
  • Recommended Rope3/8” (SAE J706) 10 mm (EN 14492-1)
  • Rope AttachmentQuad-drilled (Left-hand or Right-hand winding drum) Provides flexibility to mount winch in the best orientation
  • Standards ComplianceSAE J706 / EN 14492-1. CE Directives--Machinery 2006/42/EC; Noise Emission 2000/14/EC; Electromagnetic Compatibility 2014/30/EC
  • Winch SeriesSI Hydraulic Series
$2,402.00
Superwinch SI Series Hydraulic Winches
6 Images

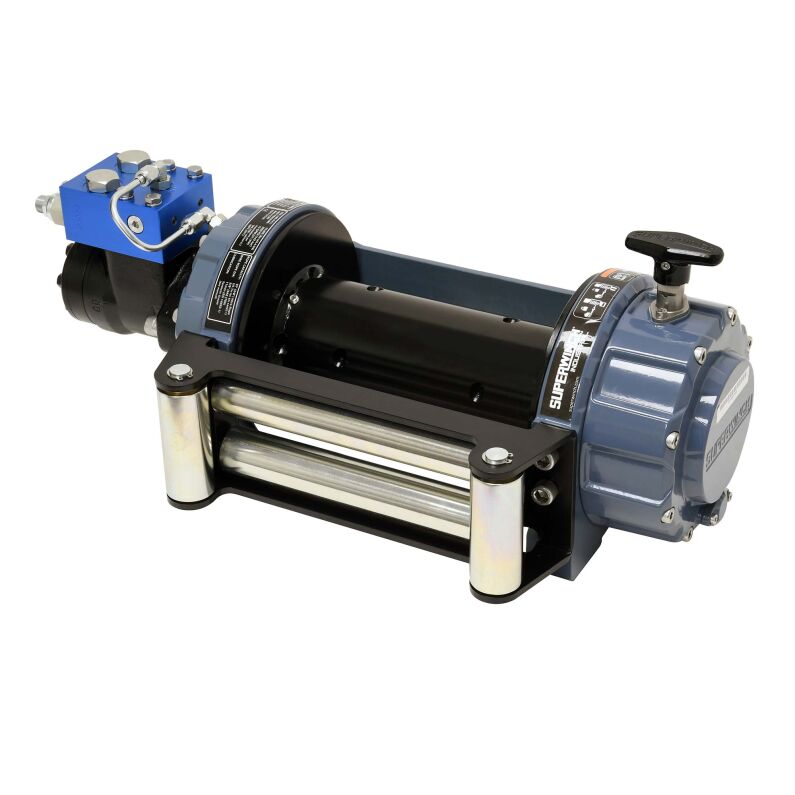

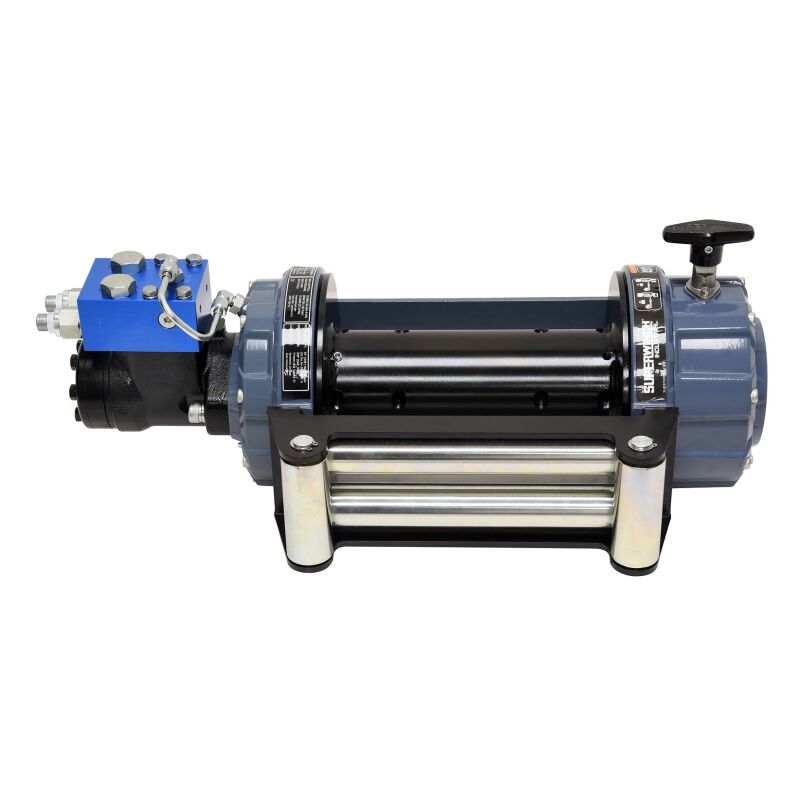

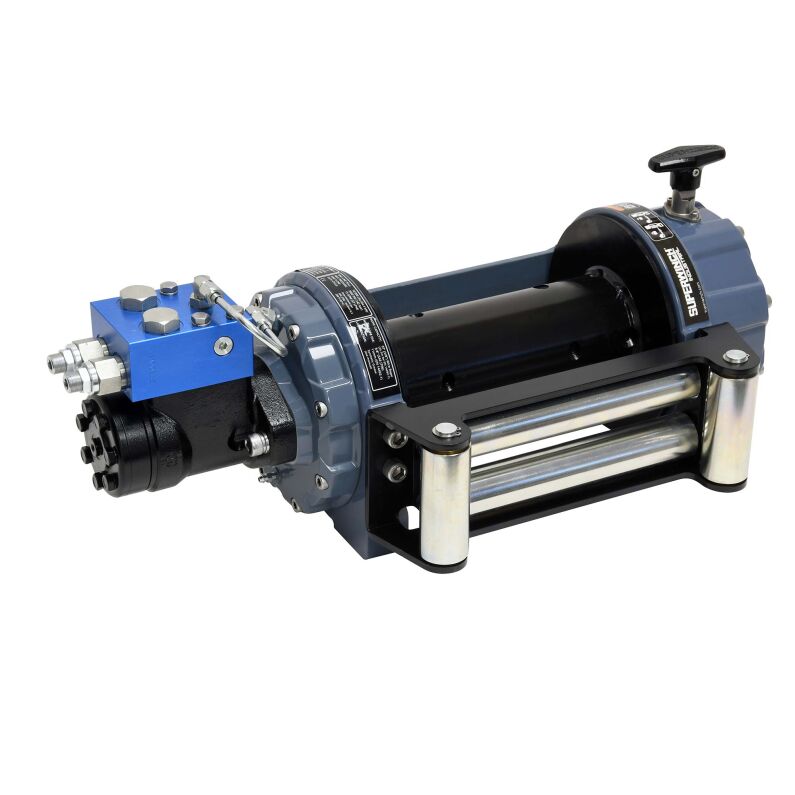

  • 10000 lb. standard drum hydraulic winch
  • 16:1 gear ratio
  • Roller fairlead

Superwinch designs and delivers automotive products that give you the function you need to fit your active lifestyle. Superwinch products are proudly designed, tested and engineered in San Dimas, California, USA. Innovation, passion and consistency have made Superwinch one of the industry's leading manufacturers. Our diverse range of products is backed by a superior manufacturer warranty. When it comes to your vehicle, Superwinch is the name you can trust.

2 Year Limited Warranty



SI Series Winch Service Parts Guide

Download SI Series Winch Service Parts Guide



SI 8000 Narrow Drum

SI 8000 Standard Drum

SI 10000 Narrow Drum

SI 10000 Standard Drum

SI 12000 Standard Drum

SI 15000 Standard Drum

Small Parts Kit S106058 S106058 S106058 S106058 S106058 S106058
Motor Assembly S106100 S106100 S106102 S106102 S106104 S106104
Clutch Actuator Assembly (Manual) S100264 S100264 S100264 S100264 S100264 S100264
Super Block (Control Block) S106103 S106103 S106103 S106103 S106103 S106103
Clutch Actuator Assembly
(Air)
S100512 S100512 S100512 S100512 S100512 S100512
Cable Tensioner S100501 S100500 S100501 S100500 S100500 S100500
Fairlead, Roller S100507 S100506 S100507 S100506 S100506 S100506
  • COLOR : Blue Gray
  • EN COMPLIANT : Yes
  • FINISH : Powder Coated
  • MATERIAL : Steel
  • RATED SINGLE LINE PULL (LBS) : 10000
  • WINCH MODEL : SI 10000

Product Fits These Vehicles:

  • Universal Fitment
×
