Superwinch SP Series Powersports Winches

Change Vehicle
Superwinch Winches and Accessories

Superwinch SP Series Powersports Winches

This product is universal fit. Please check fit and options before purchase.

Mail-in Rebate: $25-40

Rebate Form
Select Items to
Add to Cart

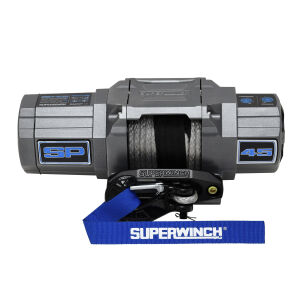

1145250
  • ColorGraphite
  • Dimensions19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • MaterialSteel
  • Motor1.8 HP, permanent magnet motor, 12V DC
  • Mounting Bolt Pattern4.88in × 3.0in (124mm × 76mm)
  • Net. Weight31 lbs (14kgs)
  • Rated Single Line Pull (Lbs)4500
  • Remote ControlDash-mounted control switches and handheld remote control
  • Rope MaterialSynthetic
  • WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
  • Winch Hook1/4in, Clevis Pinned Latched
  • Winch ModelSP 45 Series
$569.00
& Free Shipping!
In Stock

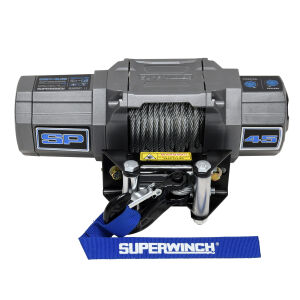

1145240
  • ColorGraphite
  • Dimensions19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • MaterialSteel
  • Motor1.8 HP, permanent magnet motor, 12V DC
  • Mounting Bolt Pattern4.88in × 3.0in (124mm × 76mm)
  • Net. Weight33 lbs (15kgs)
  • Rated Single Line Pull (Lbs)4500
  • Remote ControlDash-mounted control switches and handheld remote control
  • Rope MaterialSteel Wire
  • WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
  • Winch Hook1/4in, Clevis Pinned Latched
  • Winch ModelSP 45 Series
$549.00
& Free Shipping!
In Stock

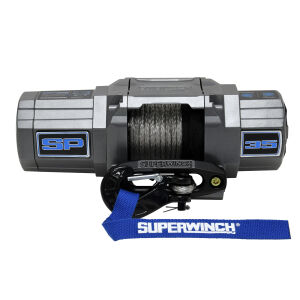

1135250
  • ColorGraphite
  • Dimensions19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • MaterialSteel
  • Motor1.6 HP, permanent magnet motor, 12V DC
  • Mounting Bolt Pattern4.88in × 3.0in (124mm × 76mm)
  • Net. Weight59 lbs (26.7kgs)
  • Rated Single Line Pull (Lbs)3500
  • Remote ControlDash-mounted control switches and handheld remote control
  • Rope MaterialSynthetic
  • WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
  • Winch Hook1/4in, Clevis Pinned Latched
  • Winch ModelSP 35 Series
$469.00
& Free Shipping!
In Stock

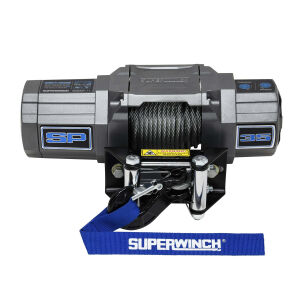

1135240
  • ColorGraphite
  • Dimensions19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • MaterialSteel
  • Motor1.6 HP, permanent magnet motor, 12V DC
  • Mounting Bolt Pattern4.88in × 3.0in (124mm × 76mm)
  • Net. Weight94 lbs (42kgs)
  • Rated Single Line Pull (Lbs)3500
  • Remote ControlDash-mounted control switches and handheld remote control
  • Rope MaterialSteel Wire
  • WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
  • Winch Hook1/4in, Clevis Pinned Latched
  • Winch ModelSP 35 Series
$449.00
& Free Shipping!
In Stock
No Items Selected
Superwinch SP Series Powersports Winches
38 Images

SP35SR

  • 3500 lbs. rated line pull
  • 12V DC 1.6 HP permanent magnet motor (provides dynamic braking)
  • 3-Stage planetary gearing with 198:1 ratio
  • Patented drumlight
  • Ergonomic Twistlock Clutch Handle
  • Full load holding automatic brake
  • Patented drum light
  • Synthetic rope measures 7/32" x 40'
  • Drum measures 1.96" x 3.74"
  • Heavy duty ¼” clevis winch hook
  • Aluminum hawse fairlead
  • Dash-mounted control switches
  • 10’ Handheld remote control
  • Wireless Handheld Remote #2277 (Sold Separately)



SP45SR

  • 4500 lbs rated line pull
  • 12V DC 1.8 HP permanent magnet motor (provides dynamic braking)
  • 3-Stage planetary gearing with 198;1 ratio
  • Patented drumlight
  • Ergonomic Twistlock Clutch
  • Automatic, Full load holding brake
  • Patented drum light
  • Synthetic rope measures 1/4" x 40'
  • Drum measures 1.96" x 3.74"
  • Heavy duty ¼” clevis winch hook
  • Aluminum hawse fairlead
  • Dash-mounted control switches
  • 10’ Handheld remote control
  • Wireless Handheld Remote #2277 (Sold Separately)

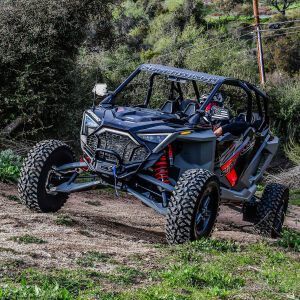

The Superwinch SP Series UTV Winch stands out as a reliable companion for off-road enthusiasts, boasting a robust 3500 or 4500 lbs. pulling capacity. Its sealed 12-volt motor and planetary gear system ensure formidable power delivery and durability, making it adept at tackling demanding terrain with ease. The modern compact design facilitates easy installation on a variety of UTVs and is available with traditional wire cable or synthetic rope for reduced weight, improved safety, and easy handling. Equipped with dash mount control switches and a 10' handheld remote control for convenient operation, SP series winches ensure smooth and efficient winching experiences, making it an indispensable tool for UTV adventures.

Mechanical Warranty: Limited Lifetime
Electrical Warranty: Limited 3 Year
